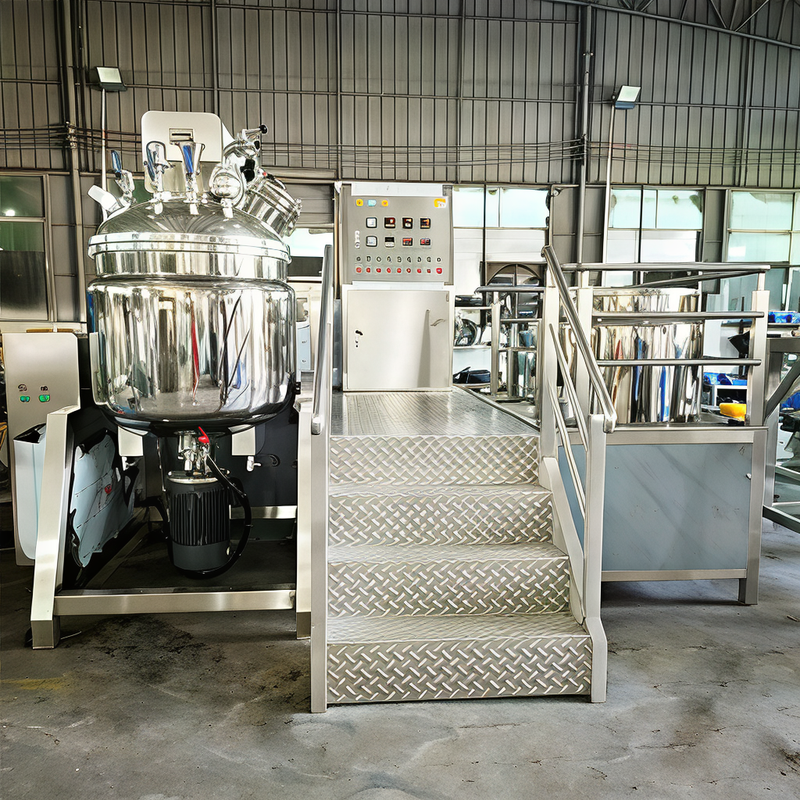

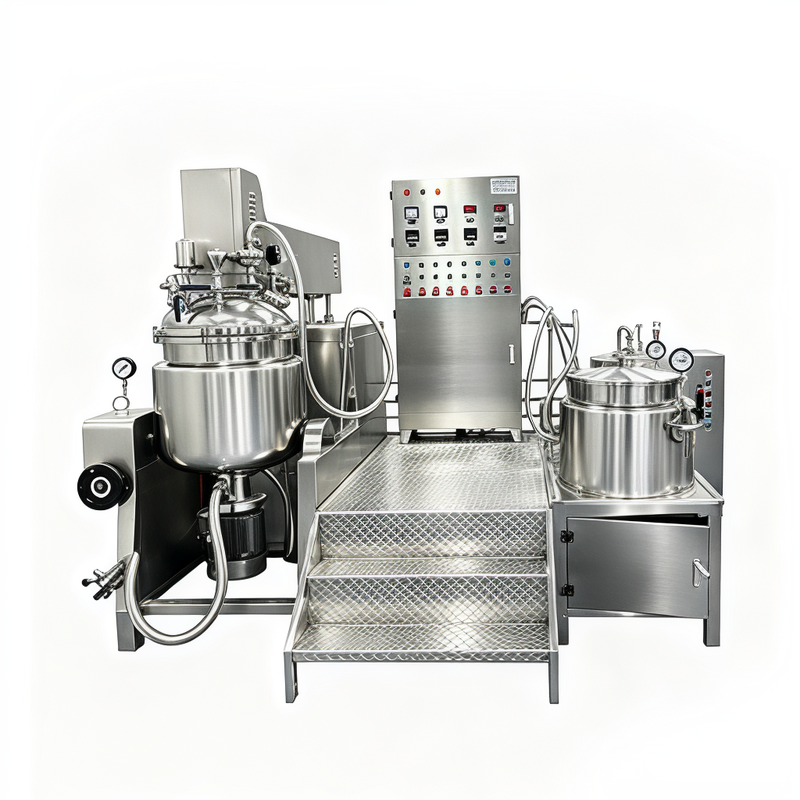

100L Hydraulic Lifting Vacuum Homogenizer Emulsifying Mixer Machine With water tank and oil tank
Brand Name:
Beyer
Place of Origin:
Guangzhou,China
MOQ:
1pcs or more
Payment Terms:
T/T, Westernunion, Paypal, Cash, Alipay
Delivery Time:
3-30 working days depends on quantity
Accept Custom Service:
Yes
Certification:
CE / SGS
1-Year warranty:
Access to free parts replacement during one year.
Insurance:
Yes
Packing:
Professional export wooden packing
Shipping:
Shipping fee and delivery date to be negotiated
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
product Application
The machine is applied to facial cream , hand cream , daily chemical care products , biopharmaceutical , food , paint , ink , nanometer materials , petrochemical , printing and dyeing auxiliary , pulp and paper , pesticide , fertilizer , plastic and rubber , electrics and electronics , prominent for materials of high base viscosity and high solid content .
7 (9)
Product Features
Screw stirring. Outer layer: 316L: 5mm, middle layer: 304mm, outer layer: 3043mm. Upper stirring power: 2.2kw.0-63rpm. Vacuum pump: 1.45kw. Schneider electronic accessories. Material contact: 316L, other parts: 304 material. Siemens homogenizer, frequency conversion speed control. Mechanical seal: GBM brand. Manual unloading. Temperature display: digital thermometer, pressure vacuum display: pressure vacuum display platform. Electric heating. Tap water cools. Working pressure: 0.1-0.15MPA. Inner working pressure: -0.07-0.02MPA, design volume: 125L, production capacity: 100L, button control. Pot total thickness: 50MM. With: raw spice inlet, sunk inlet, filtered inlet, inspection mirror, CIP spray head, vacuum port, pressure gauge
Product Parameter
| Water tank | |||
| Tank | Working volume: 350L; full volume: 380L | ||
| Inner layer | Material: 316L，thickness: 4mm | ||
| Jackted layer | Material: SUS304，thickness: 3mm | ||
| Outer layer | Material: SUS304，thickness: 2mm | ||
| Mixing motor | Power: 1.5KW Speed: 1440RPM | ||
| Discharge valve | 51 valve | ||
| Mixing type | Bottom dispersed mixing; material 316 | ||
| Oil tank | |||
| Tank | Working volume: 250L; full volume: 280L | ||
| Inner layer | Material: 316L, thickness: 4mm | ||
| Jackted layer | Material: SUS304, thickness: 3mm | ||
| Outer layer | Material: SUS304, thickness: 2mm | ||
| Mixing type | Bottom dispersed mixing; material 316 | ||
| Mixing motor | Power: 1.5KW Speed: 1440RPM | ||
| Discharge valve | 51 valve | ||
| Model | Capacity | Emulsify | Agitator | Outside Dimension | Total poer steam/ electric heating(K) | Limit vacuum (mpa) | ||||
| K | r/min | K | r/min | Length | Idth | Height | ||||
| BY100 | 100L | 2.8-4 | 1440/2800 | 1.5 | 0-63 | 1270 | 2500 | 2300 | 7/30 | -0.09 |
| BY200 | 200L | 6.5-8 | 1440/2800 | 2.2 | 0-63 | 1480 | 2650 | 2700 | 9/35 | -0.09 |
| BY300 | 300L | 6.5-8 | 1440/2800 | 3 | 0-63 | 1580 | 2800 | 2800 | 12/38 | -0.085 |
| BY500 | 500L | 6.5-8 | 1440/2800 | 3 | 0-63 | 1780 | 3050 | 2950 | 15/50 | -0.085 |
| BY800 | 800L | 9-11 | 1440/2800 | 4 | 0-63 | 1850 | 3250 | 3150 | 20/65 | -0.085 |
| BY1000 | 1000L | 9-11 | 1440/2800 | 5.5 | 0-63 | 2100 | 3400 | 3650 | 29/75 | -0.08 |
