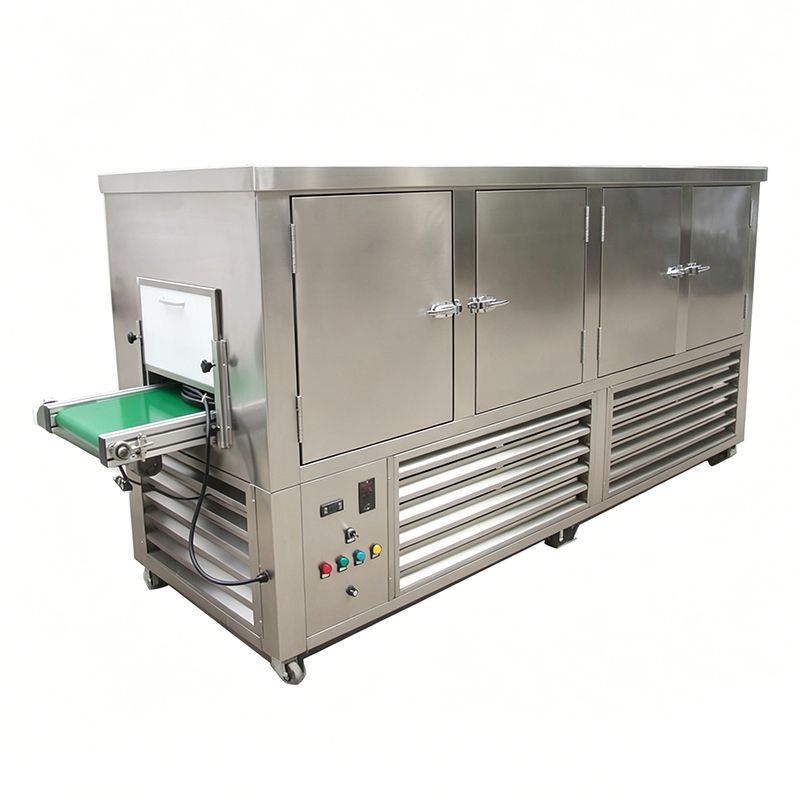

Industrial Lipstick Lipbalm freezer /Wax Chocolate Cooling Tunnel
The Beyer cosmetic cooling tunnel is designed for cooling lipstick, lip balm, lip gloss and wax products during cosmetic production. It features a SUS304 stainless steel body, air cooling with downward airflow, and adjustable temperature and conveyor speed controls. The conveyor-based system can be connected to compatible lipstick and lip balm filling equipment for the cooling stage after filling. Different cooling tunnel models are available to meet varying production requirements. Contact Beyer to discuss a suitable configuration for your production line.
Brand Name:
Beyer
Place of Origin:
Guangzhou,China
MOQ:
1pcs or more
Payment Terms:
T/T, Westernunion, Paypal, Cash, Alipay
Delivery Time:
3-30 working days depends on quantity
Accept Custom Service:
Yes
Certification:
CE / SGS
1-Year warranty:
Access to free parts replacement during one year.
Insurance:
Yes
Packing:
Professional export wooden packing
Shipping:
Shipping fee and delivery date to be negotiated
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
product Application
The cosmetic cooling tunnel is used in the cooling stage of lipstick, lip balm, lip gloss and wax-based product manufacturing. It supports the cooling of cosmetic materials after filling, helping them undergo the required cooling process before subsequent production or packaging operations. It can be connected to compatible lipstick and lip balm filling machines as part of a cosmetic production workflow. Manufacturers should confirm product dimensions, filling configurations and cooling requirements when selecting a suitable tunnel model.
a1 (2)
未标题-1 (3)
未标题-2 (3)
Product Features
SUS304 Stainless Steel Construction: The cooling tunnel features a stainless steel (SUS304) body design.
Adjustable Cooling Temperature: The cooling temperature is listed as -20 degrees, with temperature adjustment available.
Imported Compressor: Equipped with an imported compressor for the cooling system.
Air Cooling System: Uses air cooling with a downward-blowing airflow design.
Temperature and Conveyor Speed Control: Features adjustable temperature control and conveyor belt travelling speed for different cooling requirements.
Conveyor Drive System: Equipped with a frequency-converter motor and stainless steel chain belt.
Cooling Enzyme: 404A
Electrical Configuration: 220V, 3-phase, 5-wire system, 60Hz.
Door Configuration: 4 or 6 doors, with a door size of 610*610mm.
Height to Ground: 750-780mm.
Product Parameter
| Model | BYT-23 | BYT-25 | BYT-35 |
| Dimension | 2000(L)*750(w)*1200(H)mm | 2000(L)*750(w)*1200(H)mm | 3000(L)*750(w)*1200(H)mm |
| Power consumption | 3.0HP | 5.0HP | 5.0HP |
| Number of doors | 3doors | 3doors | 4doors |
| Conveyor dimension | 3500MM(L)*400MM(W) | 3500MM(L)*400MM(W) | 5000MM(L)*400MM(W) |
| POWER | AC380V/50HZ | AC380V/50HZ | AC380V/50HZ |
| Blow type | Downward blow | Downward blow | Downward blow |
| Model | BYT-28 | ||
| Machine Dimension | 3500(L)*1050(w)*1380(H)mm | Conveyor belt traveling speed | 185MM/Second |
| Power consumption | 7.50HP | Blow type | Downward blow |
| Number of doors | 4doors | Material of machine | Stainless Steel(SUS304) |
| Conveyor dimension | 5000MM(L)*800MM(W) | weight | 1000kg |
| POWER | AC380V/50HZ | Cooling capacity | 50kg/hour |
